Docker Load Balancing Demo

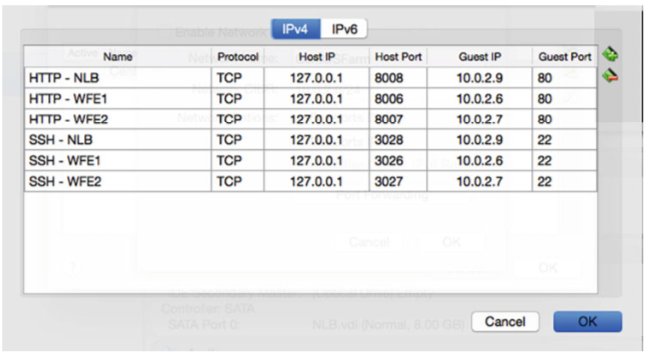

Network Topology

Base Image

docker pull ubuntu:latest
apt-get install vim curl wget tree net-tools iputils-ping nginx

Container config

Docker Network:
    docker network create -d bridge mybridge --gateway=10.0.2.1 --subnet=10.0.2.1/24
WFE1:
    docker run --name WFE1 --network mybridge --ip 10.0.2.6 -dit ubuntu
WFE2:
    docker run --name WFE2 --network mybridge --ip 10.0.2.7 -dit ubuntu
NLB:
    docker run --name NLB --network mybridge --ip 10.0.2.9 -dit ubuntu

Nginx config（/etc/nginx/nginx.conf）

user  nginx;
worker_processes  1;
error_log  /var/log/nginx/error.log warn;
pid        /var/run/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    keepalive_timeout  65;

    #gzip  on;

    include /etc/nginx/conf.d/*.conf;
}

Server config（/etc/nginx/conf.d/main.conf）

# WFE1 and WFE2
server {
    listen       80;
    server_name  localhost;
    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
    }
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }
}
# -----------nlb_conf.d/main.conf-----------------
# NLB
upstream backend{
        server 10.0.2.6;
        server 10.0.2.7;
}
server {
    listen       80;
    location / {
        proxy_pass http://backend;
    }
}

Web Content（/usr/share/nginx/html/index.html）

# WFE1 and WFE2
echo `uname -n` > /usr/share/nginx/html/index.html

Test Load Balancing with Nginx

# NLB
curl localhost

root@12bea68e0069:~# curl localhost
dd746ca75c65
root@12bea68e0069:~# curl localhost
38b8540073f9
root@12bea68e0069:~# curl localhost
dd746ca75c65
root@12bea68e0069:~# curl localhost
38b8540073f9

Load Balancing Algorithms

1. Round Robin

   # NLB
   upstream backend{
     server 10.0.2.6 weight=3;
     server 10.0.2.7 weight=1;
   }
   server {
    listen       80;
    location / {
     proxy_pass http://backend;
   } }


nginx -s reload （重新加载nginx配置文件）

root@12bea68e0069:~# curl localhost
dd746ca75c65
root@12bea68e0069:~# curl localhost
dd746ca75c65
root@12bea68e0069:~# curl localhost
dd746ca75c65
root@12bea68e0069:~# curl localhost
38b8540073f9

1. Least Connected, Optionally Weighted（最少连接，可选加权）

   # NLB
   upstream backend{
     least_conn;
     server 10.0.2.6 weight=1;
     server 10.0.2.7 weight=1;
   }


2. IP Hash

   # NLB
   upstream backend{
     ip_hash;
     server 10.0.2.6;
     server 10.0.2.7;
   }


3. Generic Hash

   # NLB
   upstream backend{
     hash $scheme$request_uri;
     server 10.0.2.6;
     server 10.0.2.7;
   }


4. Least Time (Nginx PLUS), Optionally Weighted

   # NLB
   upstream backend{
     least_time (header | last_byte);
     server 10.0.2.6 weight=1;
     server 10.0.2.7 weight=1;
   }


Docker-compose encapsulate

Docker-compose.yml

version: '3'

networks:
  mybridge:
    driver: bridge
    ipam:
        driver: default
        config:
            - subnet: 10.0.2.0/24

services:
  nginx1:
    container_name: WFE1
    build: .
    volumes:
        # - /opt/Docker-load_balancing-nginx/nginx/config:/etc/nginx
        # 上一条指令这样挂载的话，会把容器里原来的该 /etc/nginx 路径下的文件全部替换掉，因此正确的做法则是配置完成后
        # 在终端执行 docker cp nginx.conf xxx:/etc/nginx/
        - /opt/Docker-load_balancing-nginx/nginx/conf.d:/etc/nginx/conf.d
    stdin_open: true
    tty: true
    expose:
        - 80
    networks:
        mybridge:
            ipv4_address: 10.0.2.6


  nginx2:
    container_name: WFE2
    build: .
    volumes:
        # - /opt/Docker-load_balancing-nginx/nginx/config:/etc/nginx
        - /opt/Docker-load_balancing-nginx/nginx/conf.d:/etc/nginx/conf.d
    expose:
        - 80
    stdin_open: true
    tty: true
    networks:
        mybridge:
            ipv4_address: 10.0.2.7

  nginx3:
    container_name: NLB
    build: .
    volumes:
        # - /opt/Docker-load_balancing-nginx/nginx/config:/etc/nginx
        - /opt/Docker-load_balancing-nginx/nginx/nlb_conf.d:/etc/nginx/conf.d
    ports:
        - 3003:80
    stdin_open: true
    tty: true
    networks:
        mybridge:
            ipv4_address: 10.0.2.9

Dockerfile

# 基础镜像
FROM ubuntu:latest

WORKDIR /code

RUN groupadd -r nginx
RUN useradd -r nginx -g nginx
RUN apt-get update
RUN apt-get install -y vim curl wget tree net-tools iputils-ping
RUN apt-get install -y nginx

# ENV 设置环境,将在 镜像内保留
ENV NGINX_SITE_DIR=/usr/share/nginx/html \
    NGINX_LOG_DIR=/var/log/nginx \
    NGINX_CONF_DIR=/etc/nginx/ \
    NGINX_SER_CONF_DIR=/etc/nginx/conf.d

RUN rm -rf ${NGINX_SER_CONF_DIR}/*.conf

F&Q

1 . 修改运行中的容器名称别名?

2 . 复制一个运行中的容器？

3 . Mac 不能ping 容器？

docker手册上写明是 Mac 系统限制导致不能ping容器

4 . commit 创建容器添加 Commit 时不能保留原来的信息？

5 . Docker commit 命令保存的镜像文件太大的问题

docker history cb43

6 . docker-compose 构建容器后 exited with code 0 在 yml 文件的 Ubuntu镜像参数中加上stdin_open: true tty: true

stdin_open 相当于 run 命令中的 -d
tty 相当于 run 命令中的 -i

docker-compose up -d

7 . 如何在 docke-compose.yml 中使用该配置文件环境变量?

• env_file 和 environment 中定义的环境变量是传给 container 用的，而不是用在docker-compose.yml 文件中的变量
• docker-compose.yml 中的环境变量${VARIABLE:-default}引用的是在 .env 中定义的或者同个shell export 出来的

8 . volumes 挂载出错

• volumes 只能挂载文件夹，不能挂载文件
• volumes 挂载文件夹后会替换掉原来容器里的所有文件
• 容器对挂载文件进行操作，宿主主机上的文件也会变化

Ref.

• 《Nginx From Beginner to Pro》
